АЦ-30(130) модель 63А 1978
UpUpUp
| The fire tanker AC-30(130) model 63A is designed to extinguish fires with water from the tank or from an
external water source and air-mechanical foam using a transportable foam agent or taking it from an external container
| |

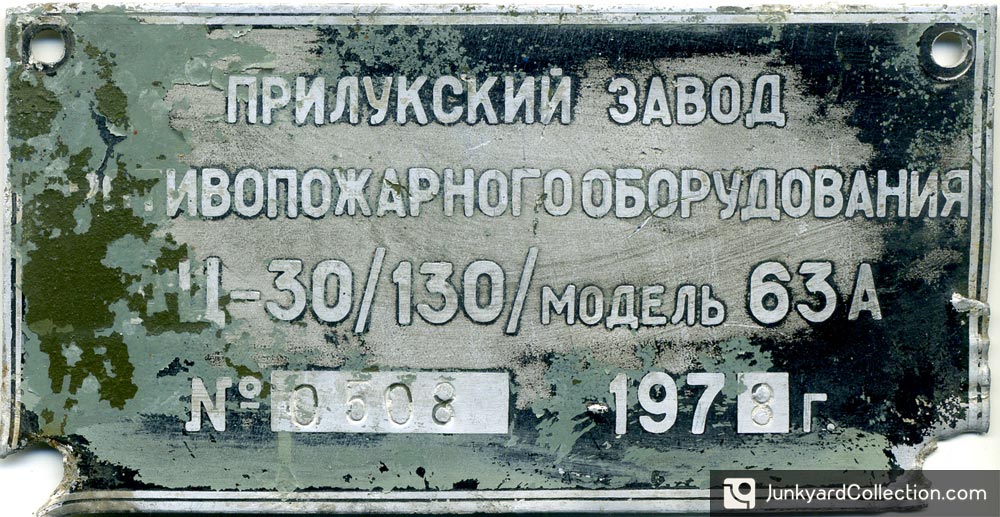

| Serial number | 0508 |
| Model code | АЦ-30(130) модель 63А |
| Production date | 1978 |
| Vehicle description | Fire engine 4x2 |
| Driver position | Left-hand drive |
| Vehicle purpose | Tanker fire truck |
| Production period | 1966-1983 |
| Number produced | 16161 - АЦ-30(130) модель 63А 1966-1983 |
| Body | |
| Crew capacity | 7 |
| Water tank capacity | 2100 l |
| Foam agent tank capacity | 150 l |
| Chassis | |
| Make and model | ЗИЛ 130 |
| Cab type | 4-door, conventional double-cab |
| Wheelbase | 3800 mm |
| Chassis capacity | 5000 kg |
| Equipment | |
| Cantilever fire pump ПН-30КФ | |
| Engine | |
| Make and model | ЗИЛ 130 |
| Specification | V8, OHV 16V; gasoline, 2-barrel carburetor К-88; 5996 см3, 150 hp, 110.3 kW at 3200 rpm |
| Production period | 1963-? |
| Transmission | |
| Make and model | ЗИЛ |
| Transmission type | Manual, 5-speed |
| Manufacturer | |
| Name | Прилуцьке виробниче об'єднання «Протипожежне обладнання» |
| Years of operation | 1975-1985 |
| Manufacturer location | Pryluky, Chernihiv Oblast, UkSSR, USSR |
| Homologation | ТУ 22-3861-76 |

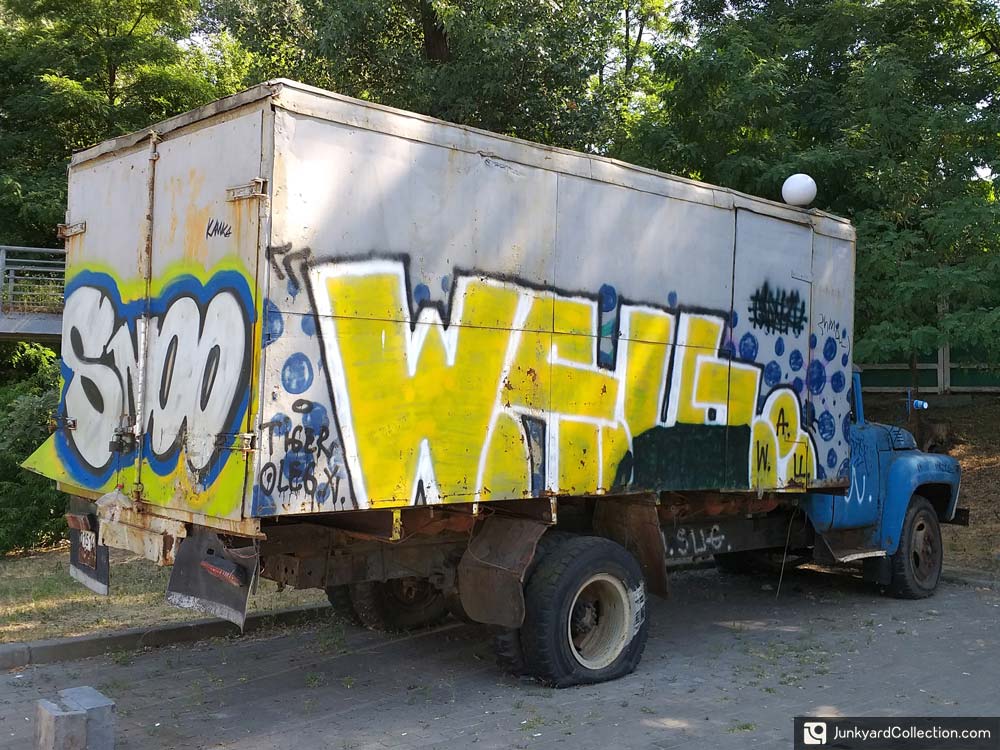

| Place | |
| Location | Kyiv, Ukraine |
| Date | 22.06.2019 |

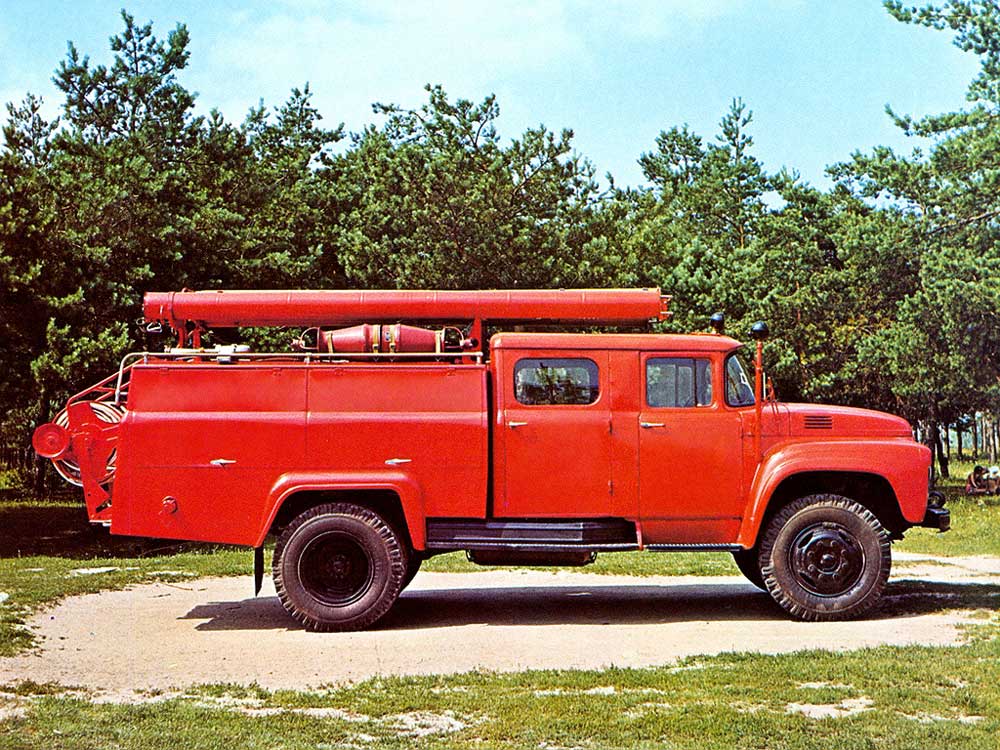

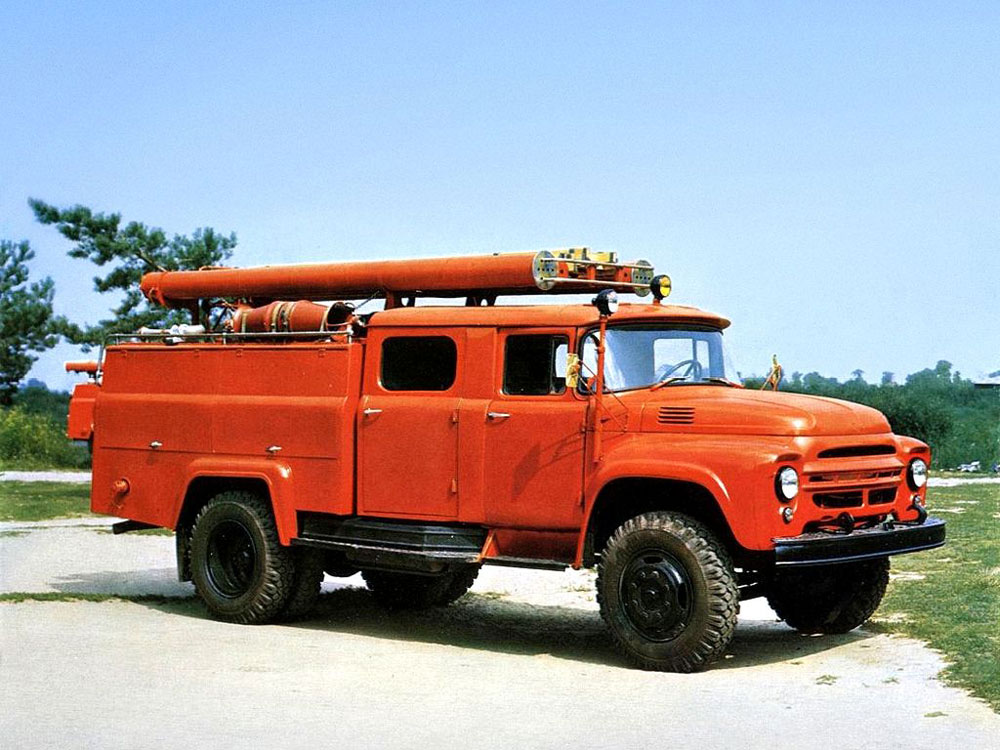

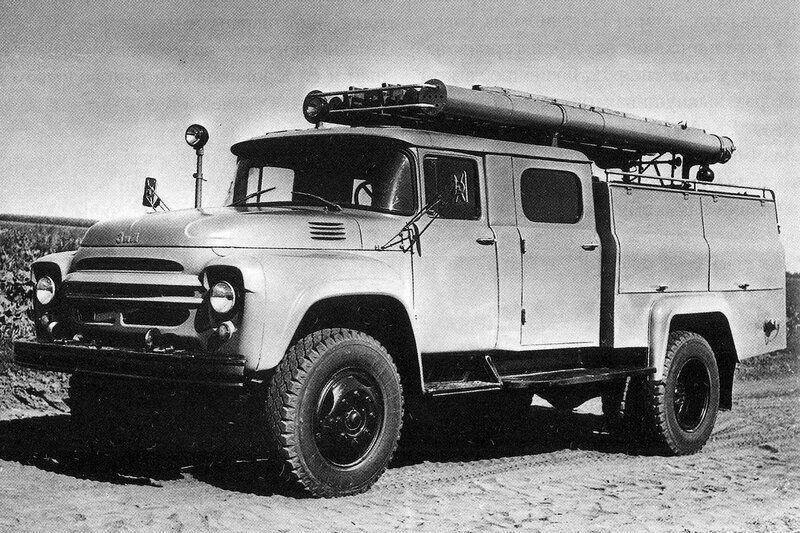

Factory photo
Prototype

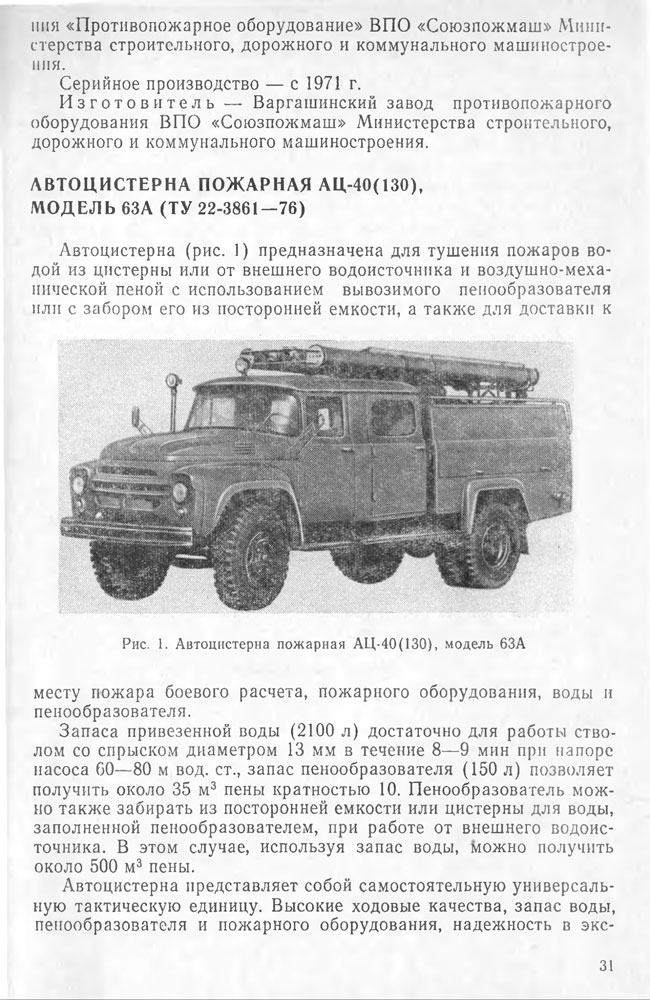

Catalog
USSR 1979

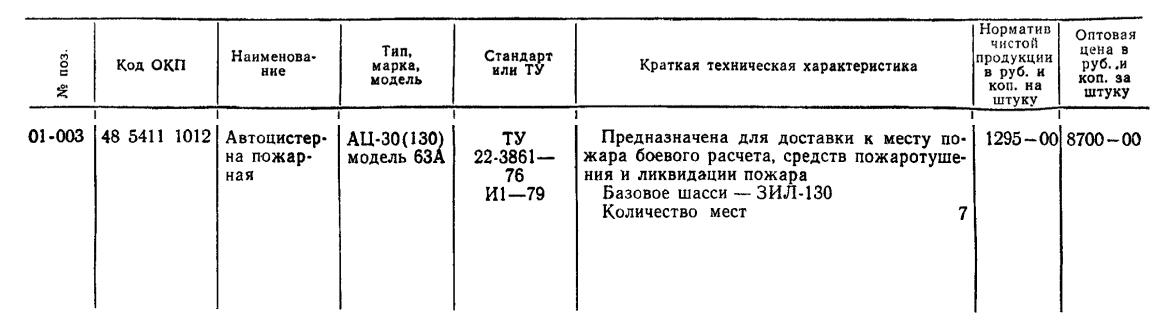

Price list
USSR 1981
