АЦ-40(131) модель 137А 1990 (ЗИЛ 131НА 1990)
UpUpUp

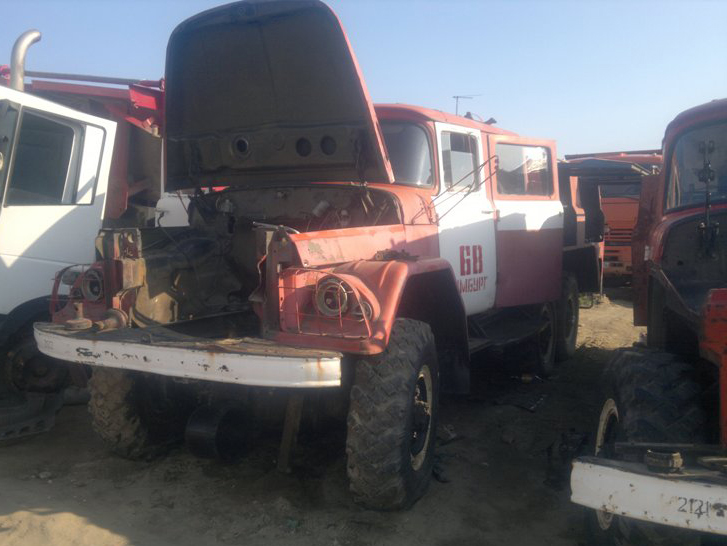

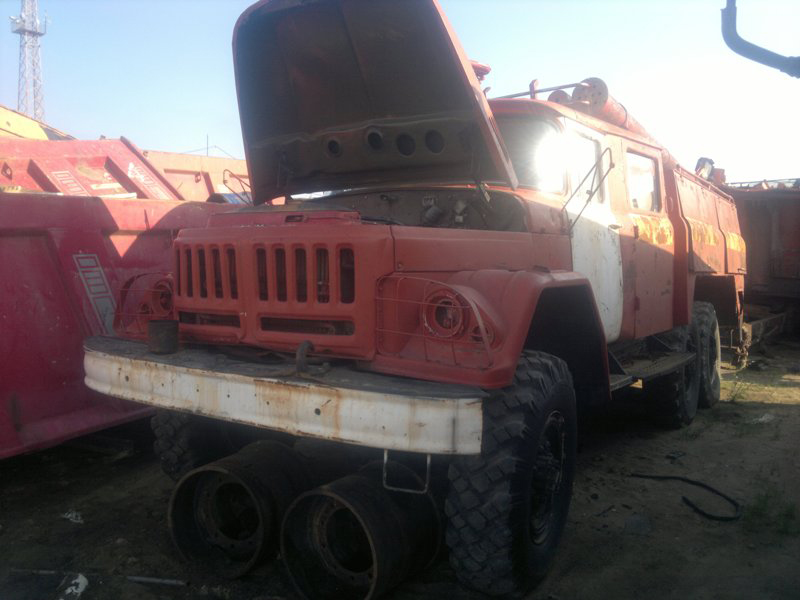

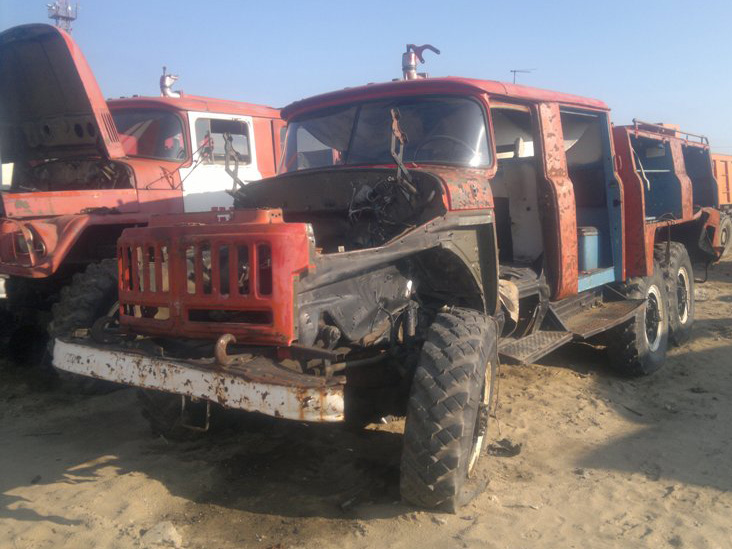

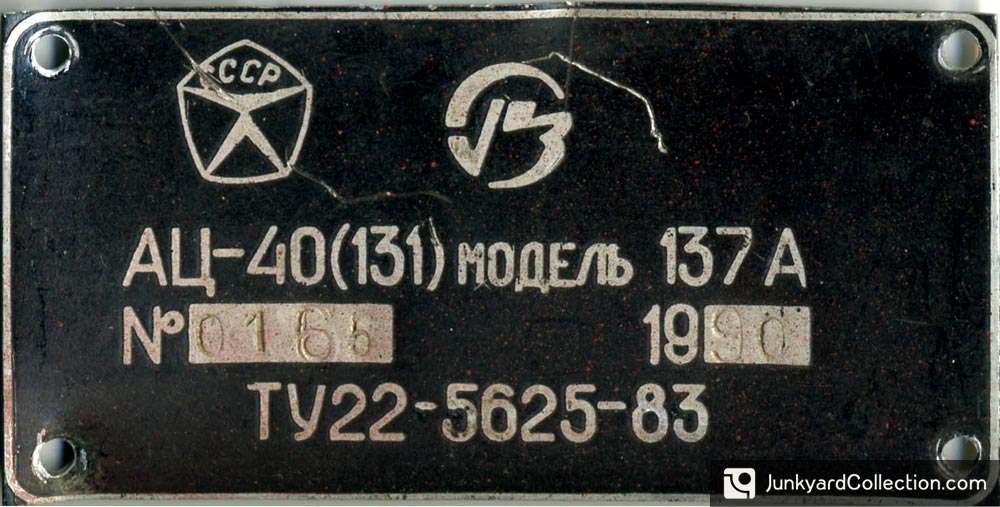

Body plate

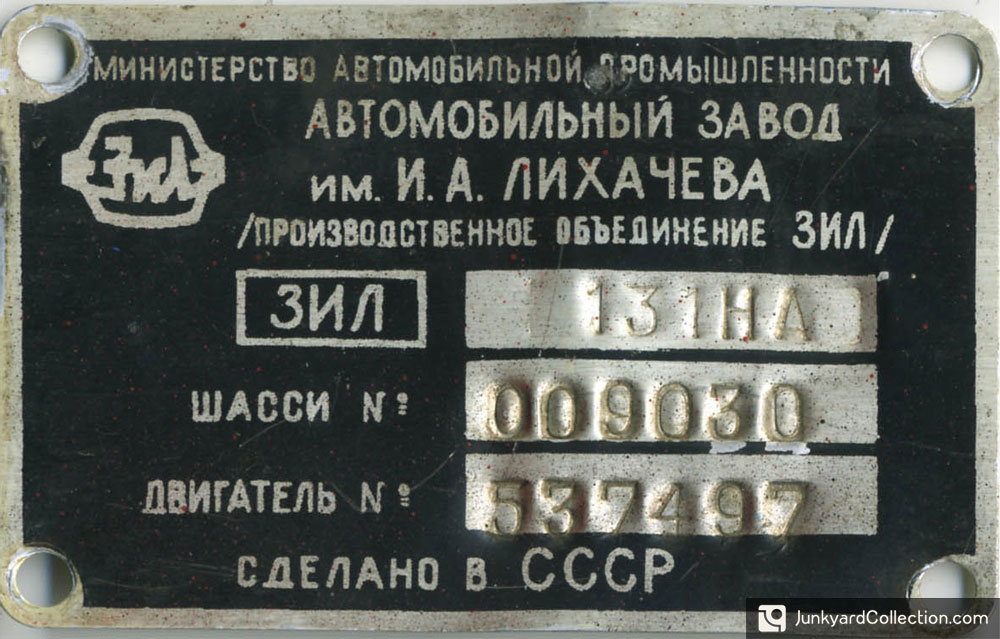

Chassis plate
| The fire tanker AC-40(131) model 137A is designed to deliver combat crews,
fire extinguishing equipment, fire-fighting equipment (FTE) to the site of a fire and is used to extinguish fires with water
and air-mechanical foam
| |
| Serial number | 0165 |
| Model code | АЦ-40(131) модель 137А |
| Production date | 1990 |
| Vehicle description | Fire engine 4x2 |
| Driver position | Left-hand drive |
| Vehicle purpose | Tanker fire truck |
| Production period | 1984-? |
| Body | |
| Crew capacity | 7 |
| Water tank capacity | 2450 l |
| Foam agent tank capacity | 165 l |
| Chassis | |
| ЗИЛ 131НА | |
| VIN | 009030 |
| Engine number | 537497 |
| Cab type | 4-door, conventional double-cab |
| Wheelbase | 3350 + 1250 mm |
| Chassis capacity | 5000 kg |
| Manufacturer | ПО Автомобильный завод имени И. А. Лихачёва (ПО ЗИЛ) |
| Years of operation | 07.1971-09.1992 |
| Manufacturer location | Moscow, Moscow Oblast, RSFSR, USSR |
| Plant name | Уральский автомоторный завод (УАМЗ) |
| Years of operation | 1967-1992 |
| Plant location | Sverdlovsk-44, Sverdlovsk Oblast, RSFSR, USSR |
| Equipment | |
| Cantilever fire pump ПН-40У (from 1973) | |
| Fire monitor ПЛС-П20 | |
| Engine | |
| Make and model | ЗИЛ 5081.1000401 |
| Specification | V8, OHV 16V; gasoline, 2-barrel carburetor К-88АТ; 5996 см3, 150 hp, 110 kW at 3100 rpm |
| Production period | 1986-? |
| Transmission | |
| Make and model | ЗИЛ |
| Transmission type | Manual, 5-speed |
| Manufacturer | |
| Name | Прилуцьке виробниче об'єднання «Пожмашина» |
| Years of operation | 1985-1994 |
| Manufacturer location | Pryluky, Chernihiv Oblast, UkSSR, USSR |
| Homologation | ТУ 22-5625-83 |
| Place | |
| Location | Ivanovo, Russia |
| Date | 26.02.2013 |

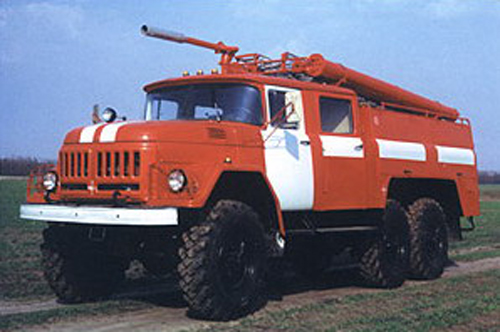

Factory photo
