МАЗ 543 M 1981
UpUpUp

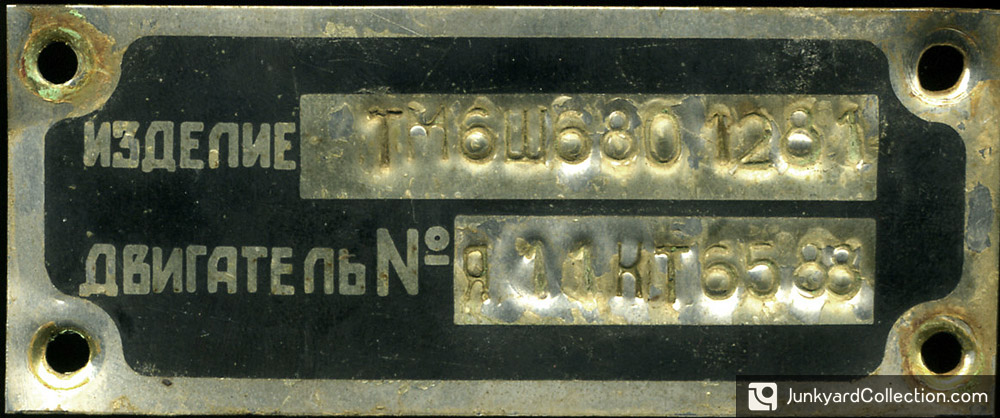

| Chassis number identification:
ТМ6Ш6 - Model code: Т - ?; М - 543 M; 6 - ?; Ш - Chassis (Шасси); 6 - ? 801 - Serial number 1281 - Production date: December 1981 | |
| Chassis number | ТМ6Ш6801281 |
| Engine number | Я11KT6588 |
| Model code | 543 M |
| Production date | 12.1981 |
| Vehicle description | Chassis 8x8 |
| Driver position | Left-hand drive |
| Vehicle purpose | Chassis specialized for mounting equipment |
| Production period | 1974-2000s |
| Number produced | ~ 4500 - 543 M |
| Chassis | |
| Cab type | 2-door special cab, 2 seats |
| Wheelbase | 2200+3300+2200 mm |
| Chassis capacity | 22400 kg |
| Gross vehicle weight | 43300 kg |
| Engine | |
| Make and model | Трансмаш Д12А-525А |
| Specification | V12; diesel; 38880 cm3, 525 hp, 386.1 kW at 2100 rpm |
| Transmission | |
| Transmission type | 3-speed, planetary with manual gear shift control |
| Manufacturer | |
| Name | Производство специальных колесных тягачей (ПСКТ) (03.1959-02.1991) Минский автомобильный завод Производственное Объединение «БелавтоМАЗ» |
| Years of operation | 09.1975-2009 |
| Manufacturer location | Minsk, Minsk Oblast, BSSR, USSR |
| Place | |

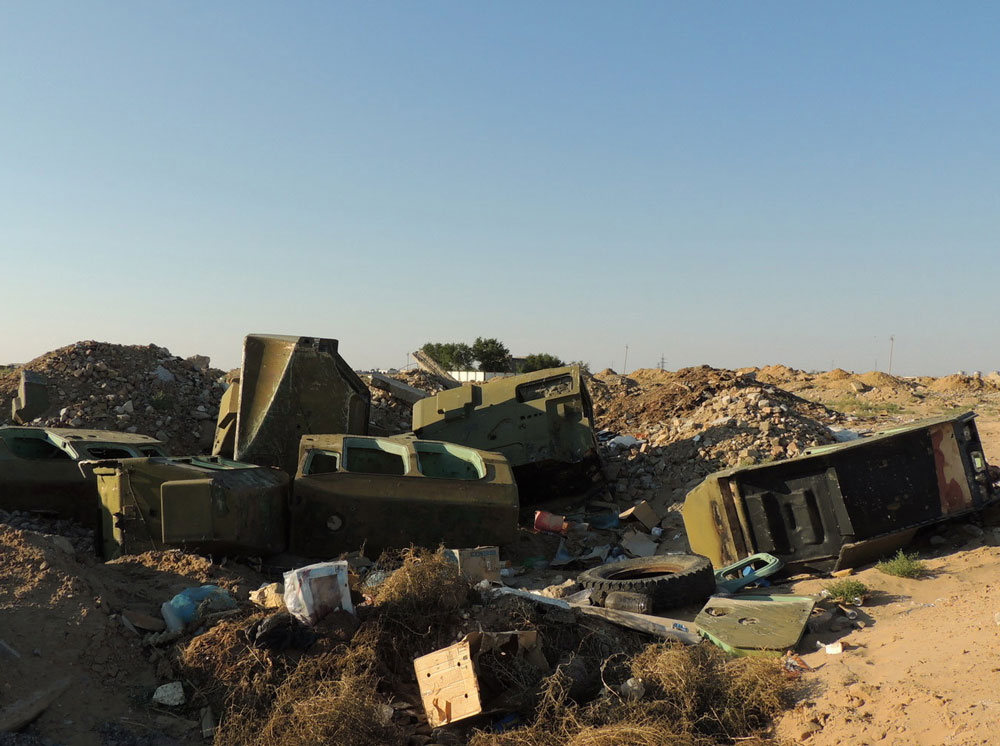

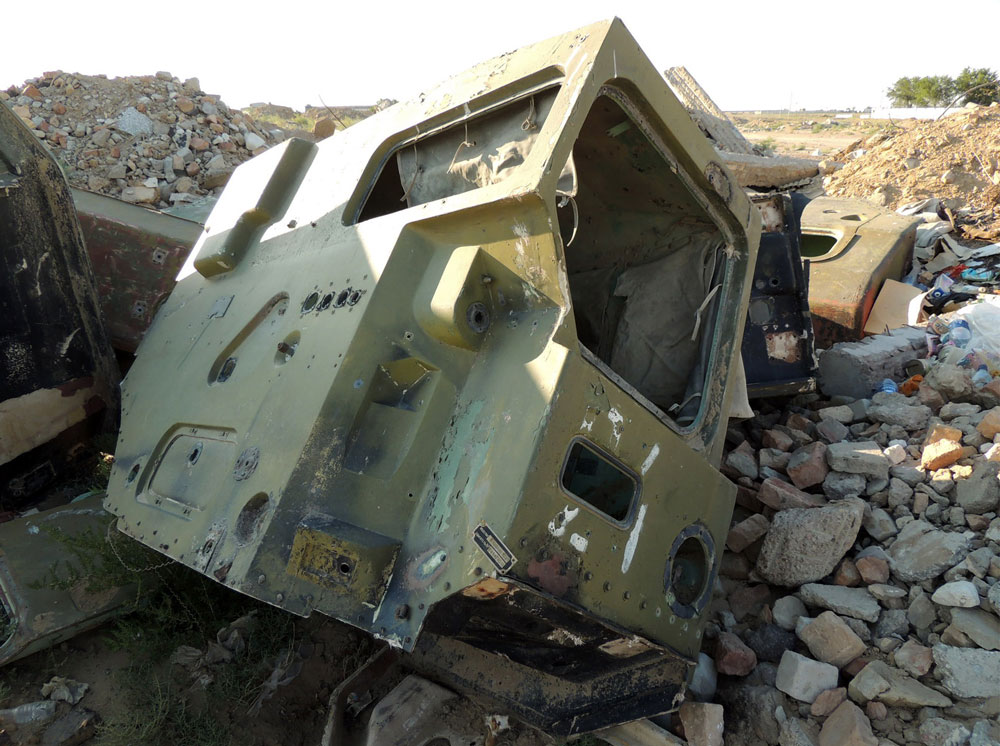

| Location | Baikonur, Kazakhstan |
| Date | 19.10.2012 |

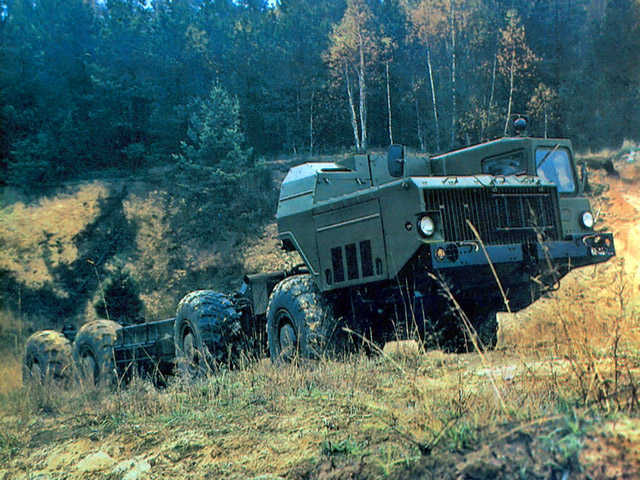

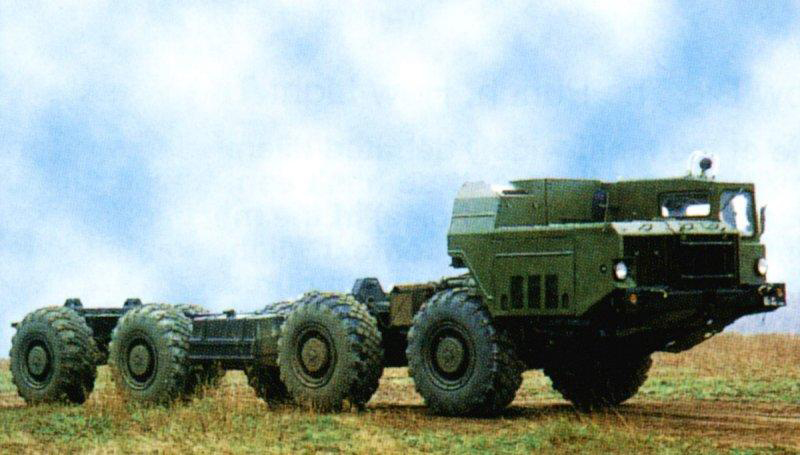

Factory photo
Blueprint

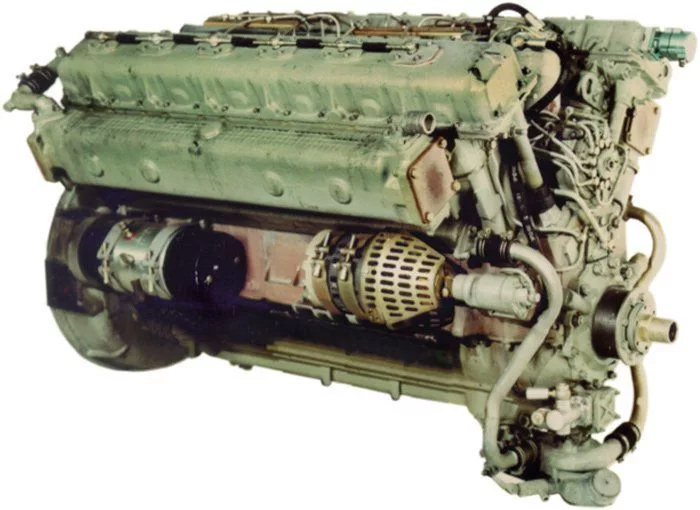

Engine
